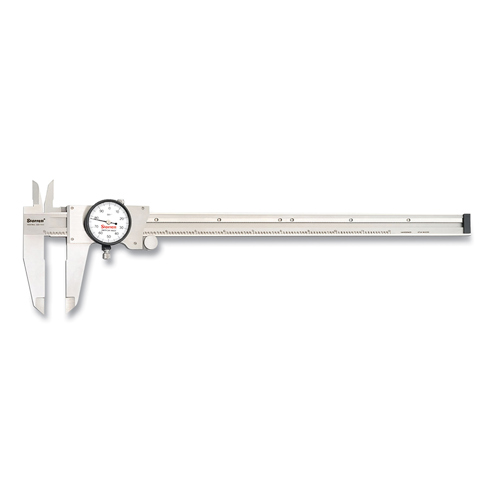

120 Series Dial Caliper, 0 to 12 in, Stainless Steel Tip, White Display


Product Description

Knife-edge contacts for both inside and outside measurements. One hand use with the thumb-operated, fine adjustment roll. Lock screw for dial bezel. Lock screw for holding the sliding jaw in position. Positive, split-gear anti-backlash control. Rack teeth point down to make it easy to shed foreign matter and thereby keep the area clean .

Specifications

Accuracy 0-6 in/(+/-.001 in)
Body Material Stainless Steel
Case Material Plastic
Display Color White
Display Type Dial
Finish Stainless Steel
Graduation(s) .001 in
Height [Nom] 1.2 in
Includes Plastic Case
Inside Jaw Depth .75 in
Length [Nom] 16.3 in
Lower Jaw Length 5/8 in
Material Stainless Steel
Measurement Type Outside
Model 120-12
Outside Jaw Depth 2-1/2 in
Outside Range Min - Max 0 to 12 in
Range [Max] 12 in
Range [Min] 0 in
Range/Revolution 0.1 in
Style Dial
Tip Material Stainless Steel
Type Dial Caliper
Upper Jaw Length 1-1/2 in
Usage Inside, Outside and Depth Dimensions
Width [Nom] 4.7 in
Wt. 1.1 lb
Prop65 WARNING: This product can expose you to Lead, a chemical known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
