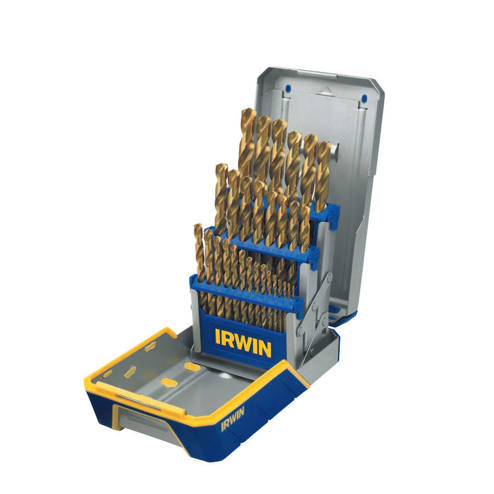

29-pc Titanium Metal Index Drill Bit Sets, 1/16 in - 1/2 in Cut Dia.


Product Description

Titanium nitride coating extends cutting edge life up to 6x. 135-degree split point tip starts on contact and cuts with less force. Reduced shank above 3/8 in allows the use of larger drill bits in a 3/8 in chuck. Tap and Drill selection chart for convenient reference. Automatic indexing for easy bit access and identification. Removable cartridges with easy-to-carry bits from case to worksite.

Specifications

Applicable Materials Metal
Applications Repetitive Metal Drilling w/Portable Drills; Stationary Drill Press
Cutting Diam [Max] 1/2 in
Cutting Diam [Min] 1/16 in
Cutting Diam [Nom] 1/16 -1/2 in
Cutting Edge Material HSS
Finish TiN
Graduation(s) 1/64 in
Includes 29-Piece Set with Drill Bit Sizes 1/16 in to 1/2 in Graduating in 1/64 in Increments; Metal Index Case
Length Group Jobber
Material Titanium
Measurement Type Inch
Point Angle 135 °
Point Shape Split Point
Quantity 29 per set
Shank Type Reduced
Spiral Angle CW
Wt. 4.75 lb
Prop65 WARNING: Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are: lead from lead-based paints, crystalline silica from bricks and cement and other masonry products, and arsenic and chromium from chemically-treated lumber. Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles.
