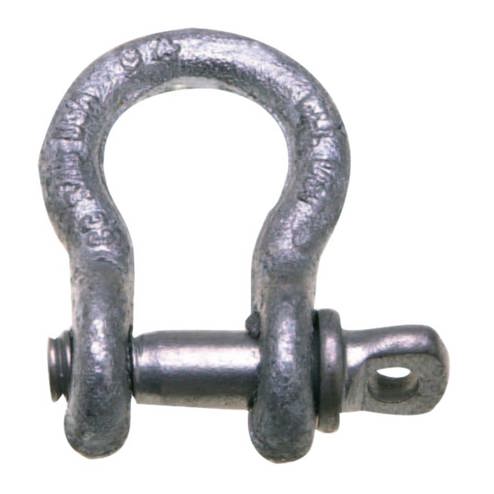

419-S Series Anchor Shackles, 1 1/2 in Bail Size, 18 Tons, Screw Pin Shackle


Product Description

Constructed of drop-forged carbon steel. Self-colored finish. Working load limit permanently shown on every shackle.

Specifications

Bail Size 1 1/2 in
Eye Outer Size 3 1/2 in
Finish Self Colored
Inner Length [Nom] 5 3/4 in
Inner Width [Nom] 3 7/8 in
Locking Type Threaded Pin
Material Forged Carbon Steel
Opening Size [Nom] 2 3/8 in
Pin Size [Nom] 1 5/8 in
Type Screw Pin Shackle
Working Load Limit 34,000 lb
Wt. 16 lb
