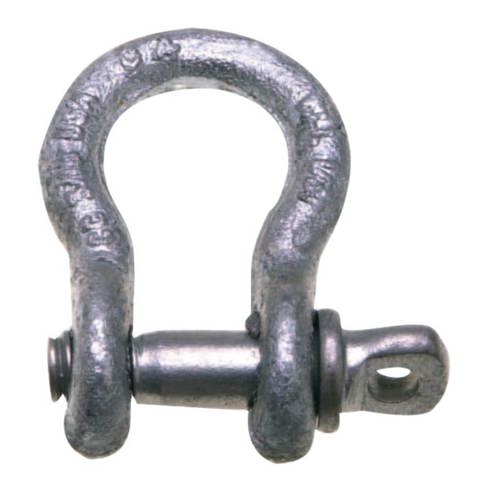

419-S Series Anchor Shackle, 5/8 in Bail Size, 3.25 Tons, Screw Pin Shackle
419-S Series Anchor Shackle, 5/8 in Bail Size, 3.25 Tons, Screw Pin Shackle
SKU: 193-5411005
Manufacturer Part Number: 5411005
Product Description
Specifications
| Bail Size | 5/8 in |
| Eye Outer Size | 1-7/16 in |
| Finish | Self Colored |
| Inner Length [Nom] | 2-7/16 in |
| Inner Width [Nom] | 1-9/16 in |
| Locking Type | Threaded Pin |
| Material | Forged Carbon Steel |
| Opening Size [Nom] | 1-1/16 in |
| Pin Size [Nom] | 0.75 in |
| Type | Screw Pin Shackle |
| Working Load Limit | 6,500 lb |
| Wt. | 1.5 lb |
