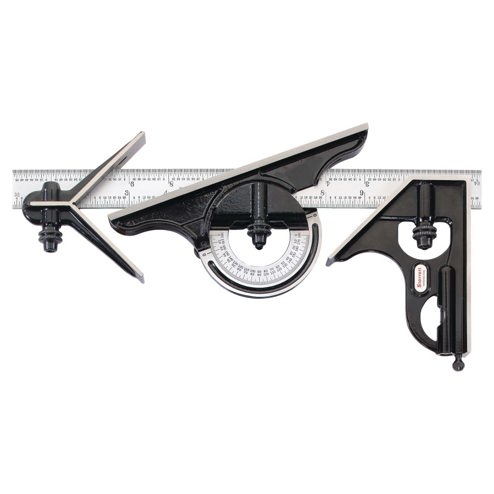

434H Series Combination Squares, 4 1/2' x 12', Quick Read 64ths, Steel/Chrome


Product Description

Reversible lock bolt allows blade to be turned over or end-for-end, without removing the lock bolt or nut. Multi-purpose uses include. 45° miter, depth gage, height gage, marking or scribing gage, a level, a plumb, and a precision rule. Spirit level in square and protractor heads. Forged and hardened steel square heads and center heads, cast iron protractor head with smooth black finish. Center head accurately finds center of round work. Steel scriber. Protractor head has direct reading, double 180° scale. Hardened, machine divided graduations, blade.

Specifications

Beam Length 4 1/2 in
Beam Material Forged Hardened Steel
Beam Width [Nom] 3/4 in
Blade Finish Satin Chrome
Blade Length [Nom] 12 in
Blade Material Steel
Blade Thickness [Nom] 3/32 in
Blade Width [Nom] 1 in
Finish Black Enamel
Graduation(s) No. 4R - 8ths, 16ths; Quick Reading 32nds, 64ths
Increment @ Scale 1/16 in @ 1 in; 1/32 in @ 1 in; 1/64 in @ 1 in; 1/8 in @ 1 in
Material Forged Steel; Satin Chrome
Measuring System Inch
No. of Scales 4
Quantity Each
Type Combination Square
Wt. 2.33 lb
Prop65 WARNING: This product can expose you to Lead, a chemical known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
