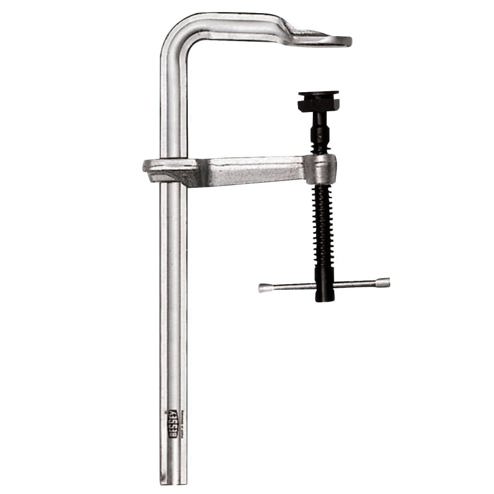

4800S Series Bar Clamps, 12 in, 7 in Throat, 4,880 lb Load Cap


Product Description

MorPad tilts to 35°. Forged sliding arm is made from tempered drop-forged steel for long service life. High strength electro-galvanized sliding pin T-handle – rounded ends for comfort, size engineered to load capacity. Heat treated, high carbon Acme threaded screw – tempered and quenched to give greater load capacity with longer service life.

Specifications

Body Finish Satin
Body Material steel
Capacity [Nom] 12 in
Handle Material Tempered Steel
Handle Type Sliding Pin T-Handle
Height [Nom] 1.578 in
Length [Nom] 17 7/8 in
Load Cap. [Nom] 4,880 lb
Material Steel
Opening Size [Max] 12 in
Spindle Diam 0.85 in
Style Heavy-Duty
Throat Depth [Nom] 7 in
Width [Nom] 10 5/8 in
Wt. 12 lb
