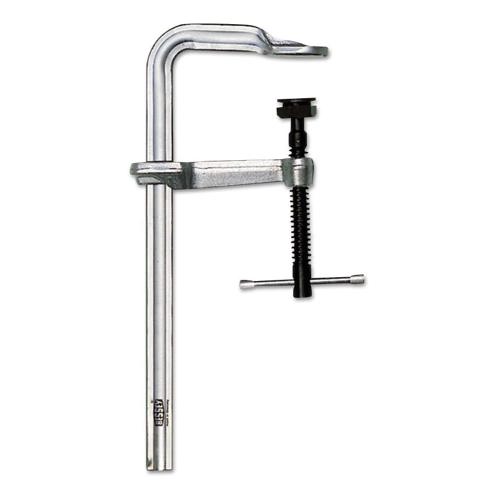

4800S Series Bar Clamps, 60 in Cap., 7 in Throat, 4,880 lb Load


Product Description

Patented rail profile offers more clamp force with fewer spindle turns. Heat treated, high carbon Acme threaded screw is tempered and quenched to give greater loading capacity and longer service life. High-strength electro-galvanized sliding pin T-handle features rounded ends for comfort, size engineered to load capacity.

Specifications

Bar Thickness 1 37/64 in
Bar Width 25/32 in
Body Finish Satin
Body Material steel
Handle Finish Electro-Galvanized
Handle Material Tempered Steel
Handle Type Sliding Pin T-Handle
Height [Nom] 1.578 in
Load Cap. [Nom] 4,880 lb
Locking Type Thread Locking
Material Steel
Opening Size [Max] 60 in
Spindle Diam 0.85 in
Spindle Material High Carbon Steel
Style Heavy-Duty
Throat Depth [Nom] 7 in
Width [Nom] 10 5/8 in
Wt. 27 lb
