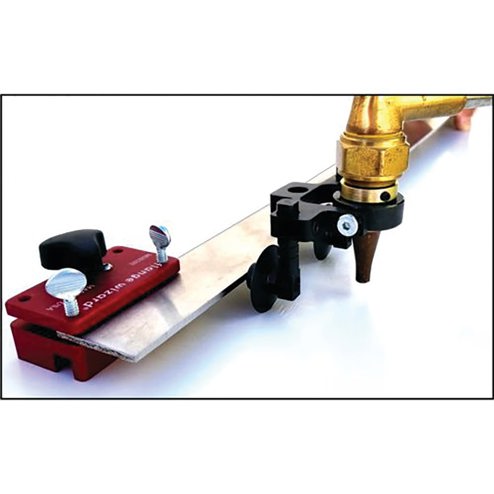

Multi-Purpose Chariot Beveling Burning Guide, 41/64 in ID (0.640 mm) Universal Bushing


Product Description

Wheels can be adjusted for straight, irregular shapes, or circle cuts. New design allows you to use the third wheel in conjunction with the Magnetic Torch Guide (MSG230) for precision burning or beveling edges of plate, beams, channels, and more. The head of the new guide will now lock in place for straight 90 degrees or bevel cutting at 22.5 degrees, 37.5 degrees, and 45 degrees. Universal bushing fits all conventional torches. 5/16 inch x 15-1/2 inch hex arm extension (3311-EX) is available for larger circles (sold separately).

Specifications

Angle [Nom] 22.5°; 37.5°; 45°; 90°
Bushing Size 41/64 in ID (0.640 mm) Universal
Cutting Diam [Max] 36 in Circle; 34 in Beveling Inside; 37 in Beveling Outside
Cutting Diam [Min] 2 in Circle; 7 in Beveling Inside and Outside
Used on Torch(es) Magnetic Torch Guide (MSG230)
