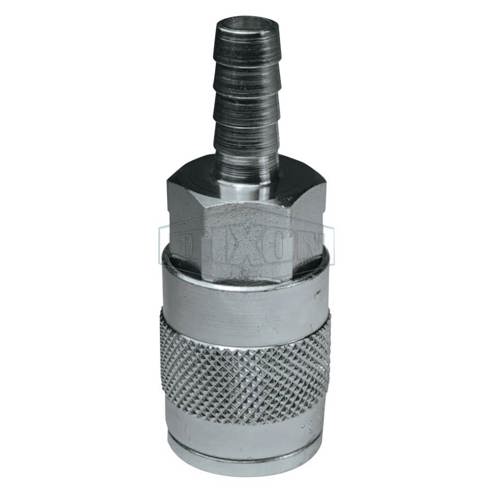

DQC F-Series Industrial Manual Coupler Standard Hose Barb, 1/2 in, Steel


Product Description

Standard hose barb is designed for use with DQC J-series automotive plugs. Machined components are made using solid bar stock. Stainless steel balls, retaining rings and springs maximize corrosion resistance and extend service life. Standard nitrile (Buna-N) seals. Includes steel sleeve and valve.

Specifications

Applications On End of Hose or Pipe
Body Material steel
Body Size 1/2 in
Connection Type Hose Barb
Dia. [Nom] 1/2 in
Finish Stainless Steel
Fitting Size 1/2 in
Fitting Type Quick Coupler Body
Flow [Nom] 91 cfm
Height [Nom] 3-1/2 in
Hose I.D. [Max] 1.19 in
Length [Nom] 3-1/2 in
Male Barb/Hose 1/2 in
Material Steel
Measuring System Inch
Operating Pressure [Max] 500 psi
Operating Temp. [Max] 250° F
Operating Temp. [Min] -40° F
Outlet Pressure [Max] 500 psi
Shape Socket
Type Coupler
Wt. 0.46 lb
Prop65 WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
