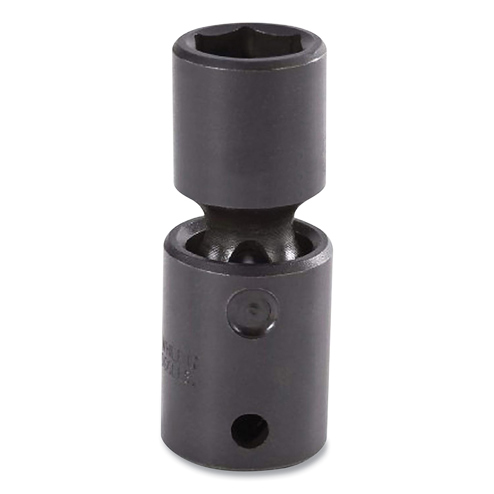

Drive Universal Impact Socket, 1/2 in drive, 1-1/32 in opening, 6 Points


Product Description

Ball and spring design which allows for a 30° working angle. Smooth 360° rotation. Ideal for use on stubborn or damaged fasteners, and also on fasteners made from soft materials. The TorquePlus™ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners. The TorquePlus™ configuration employs a radius-corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage and fastener rounding, helping to extend fastener life and allowing the user to more easily turn worn, rounded, or rusted fasteners.

Specifications

Drive Size [Nom] 1/2 in
Drive Type Impact
Finish Black Oxide
Head Width [Nom] 1-1/4 (Drive Side) in; 1-1/32 (Opening Side) in
Locking Type Pin
Material Alloy Steel
Measuring System SAE
No. of Points 6
Opening Size [Nom] 1-1/32 in
Overall Length [Nom] 2-19/32 in
Tip Type Box
Type Impact Universal Socket
Width [Nom] 1.3 in
