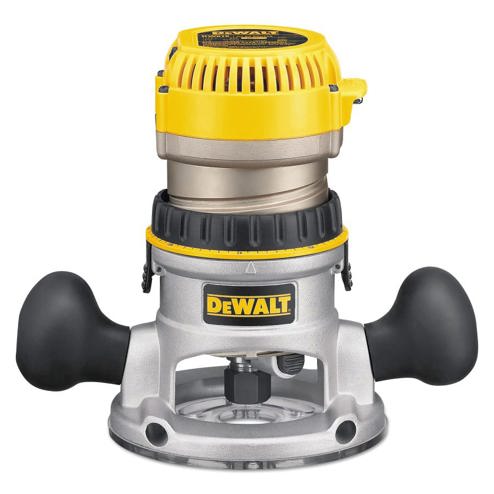

EVS Fixed Base Router w/Soft Start

115-DW618

Product Description

15.0 Amp motor uses state of the art circuitry for soft starts and smooth operation. Full wave electronic variable speed motor runs at 8,000-22,000 rpm with constant speed under load to ensure a quality finish in all materials. Rack and pinion depth adjuster, magnified scale and micro-fine bit depth adjuster provides fast and accurate depth settings. Phosphorous bronze bushings provides a smooth and accurate plunge. Spindle lock button allows one-wrench bit changes. Dust extraction adapter for cleaner work sites. Guide Bushing adapter plate accepts standard guide bushings for template work. One piece motor shaft and spindle ensures perpendicularity and accuracy. Micro-fine depth adjustment.

Specifications

Amps [Nom] 12.00 A
Base Diam [Nom] 6 in
Collet Size 1/2 in; 1/4 in
Includes DW618M Motor Pack; DW6184 Fixed Base; 1/4 & 1/2 in. collets; Wrench; sub-base concentricity gauge and large hole sub base
Locking Type Spindle
Power Cap. [Nom] 2 1/4 hp
Speed [Max] 24,000 rpm
Speed [Min] 8,000 rpm
Wt. 7.20 lb
Prop65 WARNING: Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are: lead from lead-based paints, crystalline silica from bricks and cement and other masonry products, arsenic and chromium from chemically-treated lumber. Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles.
