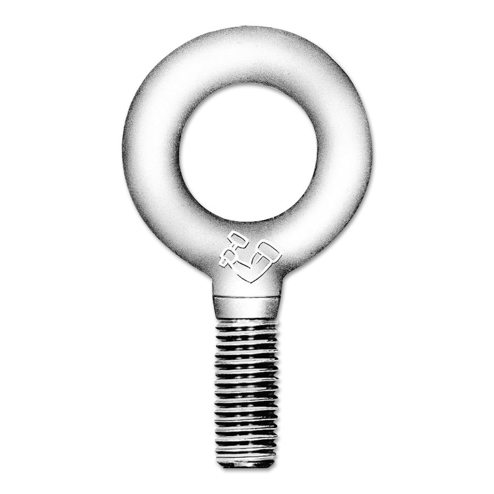

Eye Bolt Shoulder Pattern 1/2 in - 13 UNC


Product Description

Drop forged are quenched and tempered for optimum strength. Furnished with Unified National Coarse (U.N.C.) threads. Special threads and lengths.

Specifications

Eye Inner Diam [Nom] 1 3/16 in
Eye Outer Size 2 1/16 in
Load Cap. [Nom] 2600 lb
Load [Max] @ Angle 2,600 lb @ 0 °; 1,200 lb @ 30 °; 650 lb @ 45 °; 600 lb @ 60 °; 525 lb @ 90 °
Material Forged Carbon Steel
Overall Length [Nom] 1 1/2 in
Quantity 1 per box
Thread - TPI or Pitch 1/2 in - 13 UNC
Type Eye Bolt-Shouldered
Wt. 0.31 lb
