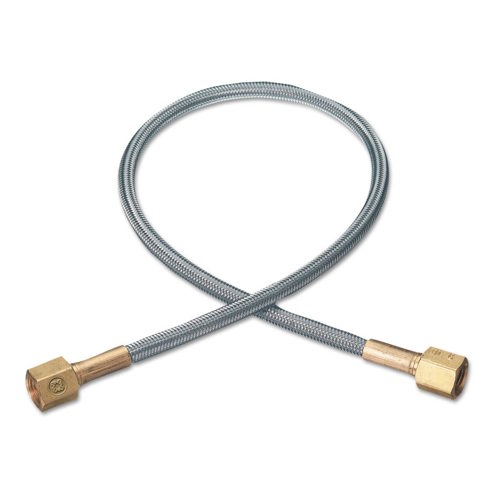

Flexible Pigtails, 6,000 PSIA, Stainless Steel, Female, 24 in


Product Description

Core consists of Teflon (polytetrafluoroethylene) with two outer reinforcing jackets of stainless steel braid (Teflon is inert to most chemicals and solvents, except molten alkali metals and fluorine at elevated temperatures and pressures). Teflon withstands temperatures from -65° F (54° C) through +450° F (232° C). Minimum bend radius of 3 inches provides for maximum life and safe performance. All pigtails 100% tested before shipping and labelled for gas service and pressure rating.

Specifications

Bend Radius [Nom] 3 in
Body Material Stainless Steel
Connection Type Female Stainless Steel
Length [Nom] 24 in
Pressure [Max] 6,000 PSIA
Thread Size [Nom] 1/4 in (NPT)
Wt. 0.76 lb
Prop65 WARNING: This product can expose you to Lead, a chemical known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
