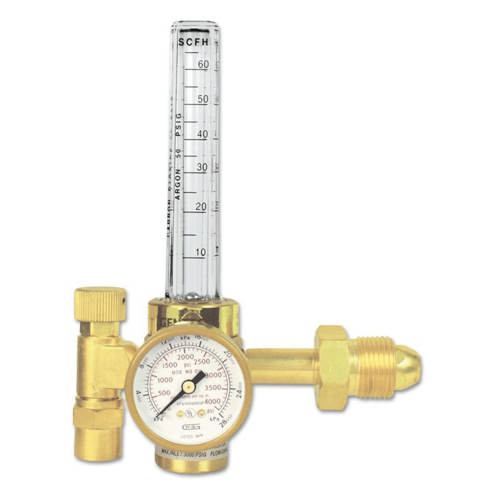

Flowmeters/Regulators, Argon; Helium; Carbon Dioxide, CGA 580, 4,000 psi inlet


Product Description

Underwriters Laboratories Inc. listed. Single stage construction. Sintered bronze inlet filter. Chrome plated housing cap. Easily read high-pressure gauge. Internal safety pressure relief design. Calibrated for argon, helium and carbon dioxide gases. Polycarbonate flow tube and outer cover are impact resistant for maximum durability and service life. 0-70 SCFH Argon flow, 0-150 SCFH Helium, 0-60 SCFH Carbon Dioxide flow. Flowmeter is back pressure compensated to ensure accurate reading when line restrictions are present. 2" high pressure gauge for easy reading.

Specifications

Applications MIG/TIG
Body Material Brass
Flow Cap. [Max] 60 SCFH
Gas Type Argon; Helium; Carbon Dioxide
Gauge Size 1 1/2 in
Inlet Connection CGA 580
Inlet Pressure [Max] 4,000 psi
Outlet Connection 5/8 in - 18 RH(F)
Outlet Pressure [Max] 50 psi
Type Medium Duty Regulator
Wt. 1.1 lb
Prop65 WARNING: This product can expose you to Lead, a chemical known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
