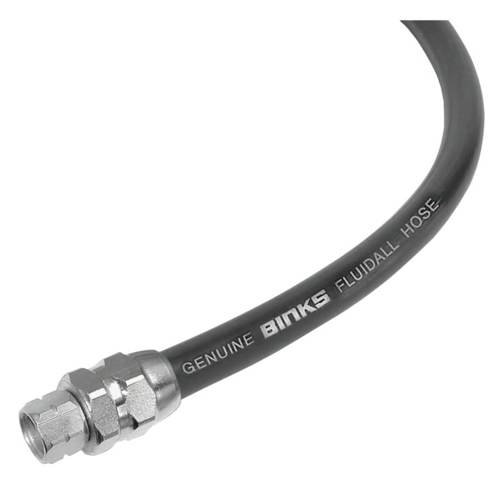

Fluidall Fluid Hose Assemblies, 11/16 in O.D., 3/8 in I.D.

105-71-3304

Product Description

Premium spray finishing air hose. Class B oil resistance. Designed for all finishing operations as well as rugged industrial applications, especially applications requiring lubricants in the airline supply or where oil and grease are present in the environment. Excellent for use with water and water-based materials. Premium, versatile fluid hose for finishing operations plus a wide range of fluid applications. Fluidall™ is ideal for resins and solvents contained in lattices, epoxies, urethanes, alkyds, primers, acrylics, polyesters, silicones, bitumastic coatings, oil and water based paints, lacquers, alcohol and latex coatings. Temperature range from 0° F to +190°F (max).

Specifications

Bend Radius [Nom] 3 1/2 in
Connection Type Female/Female
Female Thread 3/8 in
Hose Length 50 ft
Inner Diam 3/8 in
Measuring System Inch/Feet
Operating Pressure [Max] 500 psi
Operating Temp. [Max] 190 °F
Operating Temp. [Min] 0 °F
Outside Diam [Nom] 11/16 in
Reinforcement Synthetic Braided Cord
Tube Material Nylon
Wt. 8.95 lb
Prop65 WARNING: This product can expose you to Lead, a chemical known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
