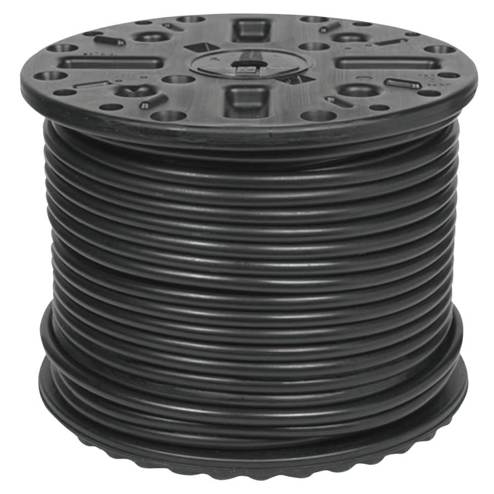

Fluidall Fluid Hose Assemblies, 8 lb @ 100 ft, 1/2 in O.D., 1/4 in I.D.


Product Description

Premium and versatile fluid hose. Ideal for resins and solvents contained in latices, epoxies, urethanes, alkyds, primers, acrylics, polyesters, silicones, bitumastic coatings, oil and water based paints, lacquers, alcohol and latex coatings. High tensile synthetic braid is specially designed for maximum flexibility (under pressure) and maximum coupling retention.

Specifications

Bend Radius [Nom] 3 in
Connection Size [Nom] 1/4 in; 3/8 in; 3/8 in
Height [Nom] 2 in
Hose Length 500 ft
Inner Diam 1/4 in
Operating Pressure [Max] 500 psi
Operating Temp. [Max] 190 °F
Operating Temp. [Min] 0 °F
Outside Diam [Nom] 1/2 in
Reinforcement Braided Cord
Tube Material Nylon
Width [Nom] 24 in
Wt. 5 lb
Wt. @ Length 8 lb @ 100 ft
