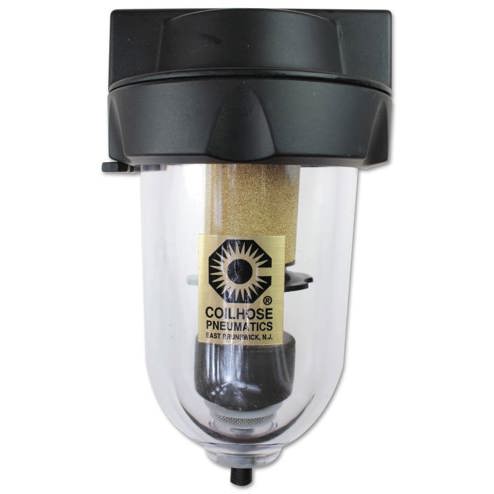

Heavy Duty Filters, Automatic Drain, 1/2 in Inlet, 150 psi


Product Description

Remove unwanted moisture and debris from compressed air systems. Designed for fixed installations in automotive, construction and industrial environments; its proven design ensures a long and trouble-free service life. Completely serviceable and can be disassembled with ease. Featuring die-cast aluminum bodies, extra large filter elements, easy maintenance and design consistency. Bayonet locking ring allows for easy bowl removal by hand.

Specifications

Body Material Die Cast Aluminum
Bowl Material Polycarbonate
Capacity Vol. [Nom] 8 oz
Designated Fluid Air
Dia. [Nom] 3 1/2 in
Drain Method Automatic
Element Material 40 Micron Sintered Bronze
Flow [Max] 108 SCFM
Flow [Min] 38 SCFM
Grade 40 µ
Height [Nom] 7 in
Inlet Size 1/2 in
Operating Pressure [Max] 150 psi
Operating Temp. [Max] 120 °F
Type Inline
Wt. 1 lb
Prop65 WARNING: This product can expose you to Lead or Lead Compound, a chemical known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
