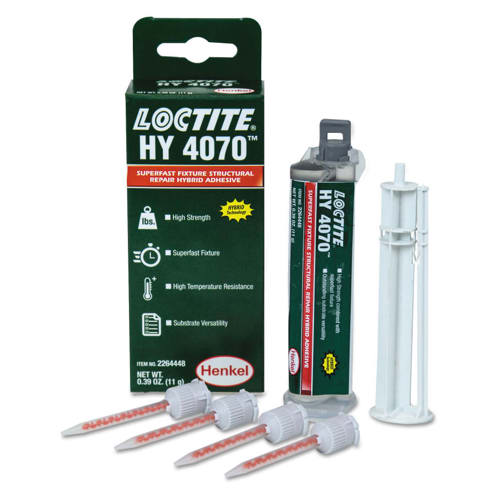

HY 4070 Hybrid Gel Adhesives, 10 mL Cartridge, Clear, 10/Case


Product Description

Loctite® HY 4070 is a two-part, transparent, cloudy colorless to pale yellow cyanoacrylate/acrylic hybrid gel adhesive that provides a fast fixture at room temperature. It suits various substrates including most plastics, rubbers and metals. It is used where complete cure of excess adhesive, as well as temperature and moisture resistance, is required. Non-sag. Gel consistency prevents adhesive flow, even on vertical surfaces. Curing is initiated on mixing the Part A and Part B components. Handling strength is achieved rapidly; full strength is achieved over time.

Specifications

Adhesive Tensile Shear 0.1 N/mm²
Applicable Materials Metal; Plastic; Rubber
Application Temp. Range [Max] +25 °C
Applications Bonding
Capacity Vol. [Nom] 10 mL
Chemical Compound Ethyl 2-Cyanoacrylate; Methacrylate
Color Clear
Elongation [Nom] 0.049
Fix Cure Time @ Temp. 4 min to 6 min (2 mm Gap) @ +25 °C; <60 s (0.05 mm Gap) @ +25 °C
Fixture Time 4 min to 6 min (2 mm Gap); <60 s (0.05 mm Gap)
Flash Point [Nom] +176 °F to +199.4 °F (Part A); +230 °F (Part B)
Gap Fill [Nom] 0.05 mm
Hardness [Nom] 65 Shore D
Language English
Packing Type Cartridge
Physical Form Gel
Ratio 12/31/1899 10:01:00 AM
Resistance Moisture; Temperature
Specific Gravity [Nom] 1.05 to 1.1
Temp. Range [Max] +25 °C
Tensile Strength [Nom] 2117 psi
Type Hybrid Gel Adhesive
Usage Bonding
Viscosity [Max] 1300 mPa (Part A); 30 mPa (Part B)
Viscosity [Min] 1 mPa (Part B); 200 mPa (Part A)
Viscosity [Nom] 1 to 30 mPa (Part B); 200 mPa to 1300 mPa (Part A)
VOC < 3 %
Working Time [Max] 4 min
Working Time [Min] 1 min
Working Time [Nom] 1 min to 4 min
Wt. 11 g
