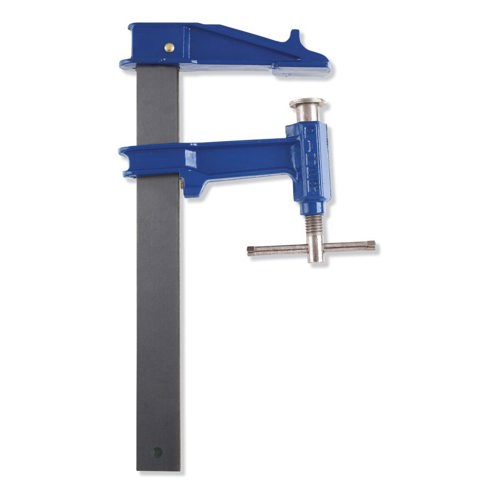

Piston E Bar Clamp, 15 cm Opening, 8.3 cm Throat Depth, 6 in Capacity


Product Description

Piston Clamp using a double threaded screw which doubles the pressure and speed and allows work on uneven surfaces, tubes. Non-slip brake preventing the tool from loosening or losing grip in jobs involving bangs or vibrations. Rolled spring steel bar which gives maximum pressure held throughout the whole job. Nodular cast iron jaws.

Specifications

Bar Thickness 8 mm
Bar Width 30 mm
Body Material Epoxy Paint Coated Cast Iron; Steel
Handle Type Steel Bar
Opening Size [Max] 15 cm
Spindle Diam 1.0 in
Throat Depth [Nom] 8.5 cm
Wt. 2.5 lb
