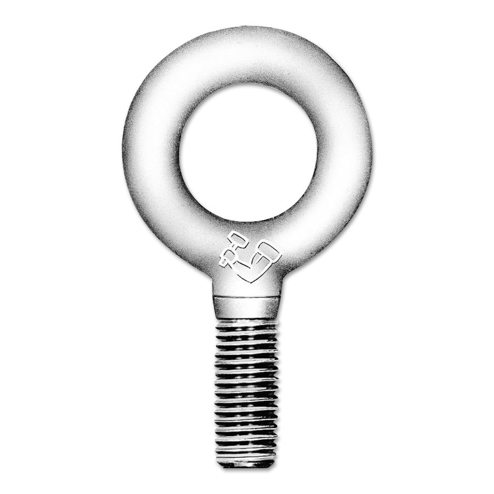

Plain Pattern Eye Bolts, 1 in - 8 UNC
Product Description
Drop forged are quenched and tempered for optimum strength. Furnished with Unified National Coarse (U.N.C.) threads. Special threads and lengths.
Specifications
| Eye Inner Diam [Nom] | 1 13/16 in |
| Eye Outer Size | 3 9/16 in |
| Load Cap. [Nom] | 9000 lb |
| Load [Max] @ Angle | 9,500 lb @ 0 °; 3,800 lb @ 30 °; 2,800 lb @ 45 °; 2,400 lb @ 60 °; 2,150 lb @ 90 ° |
| Material | Forged Carbon Steel |
| Overall Length [Nom] | 2 1/2 in |
| Quantity | 1 per box |
| Thread - TPI or Pitch | 1 in - 8 UNC |
| Type | Eye Bolt |
| Wt. | 2.09 lb |
