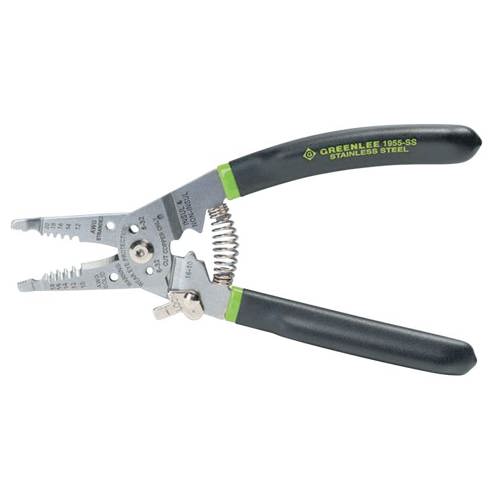

Pro Stainless Wire Stripper/Cutter/Crimper, 10-20 AWG, 6-32/8-32 Bolts, Curved


Product Description

Constructed of high-grade stainless steel. Multiple functions include plier nose, strippers, cutter, looping holes, multiple crimpers, bolt re-thread/shears and spring back with low profile lock. Precision ground stripping holes offer easy, consistent jacket removal. Looping holes and serrated nose for bending, pulling and shaping wires. Vinyl cushion grips.

Specifications

Applicable Materials Steel Bolts; Insulated and Non-Insulated Terminals
Applications Plier-Type Nose with Stripping Holes and Cutter
Cable/Wire Size [Max] 20 AWG
Cable/Wire Size [Min] 10 AWG
Capacities 10-18 AWG solid; 12-20 AWG stranded; 16-10 insulated and non-insulated terminals; 6-32 and 8-32 bolts
Crimps Sizes 16-10 and 22-18 insulated and non-insulated terminals
Finish Laser-Etched and Stamped Feature Indicators with Color-Coded Crimpers
Handle Color Green/Black
Handle Material Steel; Vinyl
Handle Type Extended Curved Vinyl Cushion Grip
Jaw Shape Plier-Type Nose
Length [Nom] 7-1/2 in
Material High-Grade Stainless Steel
Packing Type Hanging Clamshell
Strips Solid Wire [Max] 10-18 AWG
Strips Stranded Wire [Max] 12-20 AWG
Type Stripper/Cutter/Crimper
Wt. 0.3 lb
