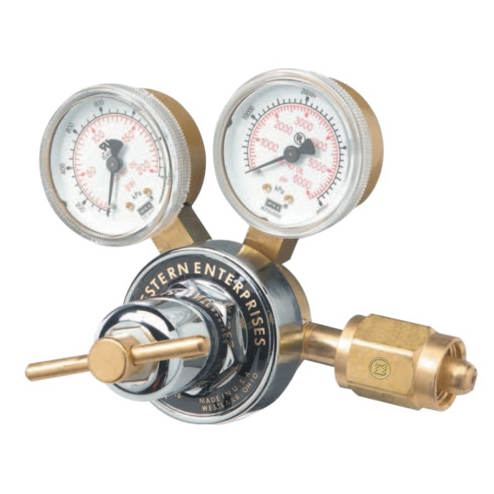

RHP High Inlet/Delivery Pressure Regulators, Compressed Air, CGA347, 6,000 psi


Product Description

Designed for use with high pressure cylinders (up to 6,000 PSIG) and are capable of delivering flow rates suitable for most high flow applications. Dual Safety Relief Valves protects against over pressurization. Low friction, replaceable thrust bushing for easy adjustment.

Specifications

Body Material Machined Brass
Depth [Nom] 7 in
Flow Cap. [Max] 3,200 SCFH
Gas Type Compressed Air
Gauge Size 2 in
Height [Nom] 6 in
Inlet Connection CGA 347
Inlet Pressure [Max] 6,000 psi
Length [Nom] 4 1/2 in
Outlet Connection 1/4 in. NPT(F)
Outlet Pressure [Max] 180 psi
Width [Nom] 7 in
Wt. 3 lb
Prop65 WARNING: This product can expose you to Lead, a chemical known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
