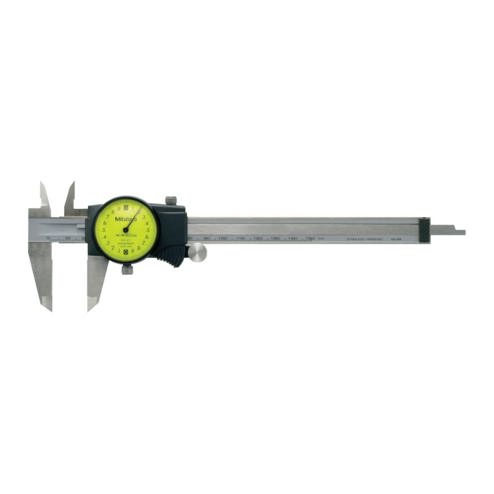

Series 505 Dial Caliper, Outside Range 0 in to 6 in, Carbide Tip


Product Description

Newly designed dial movement for ultra smooth sliding and high shock protection. Titanium nitride (TiN) coating is applied to the sliding surface to increase wear resistance. Lock screw for dial bezel and for holding the sliding jaw position.

Specifications

Accuracy ±0.001 in
Bar Width 16 mm
Case Material Plastic
Finish Titanium Nitride
Graduation(s) 0.001 in
Includes Plastic Case
Inside Range Min - Max 0 - 6 in
Length [Nom] 231 mm
Lower Jaw Length 40 mm
Measuring System Inch
Model 505-742
Outside Jaw Depth 1-9/16 in
Outside Range Min - Max 0 in to 6 in
Quantity 1 each
Range [Max] 6 in
Range [Min] 0 in
Range/Revolution 0.1 in
Tip Material Carbide Steel
Type Dial Caliper
Upper Jaw Length 21 mm
Usage Inside, Outside, Step and Depth Measurement
Wt. 175 g
