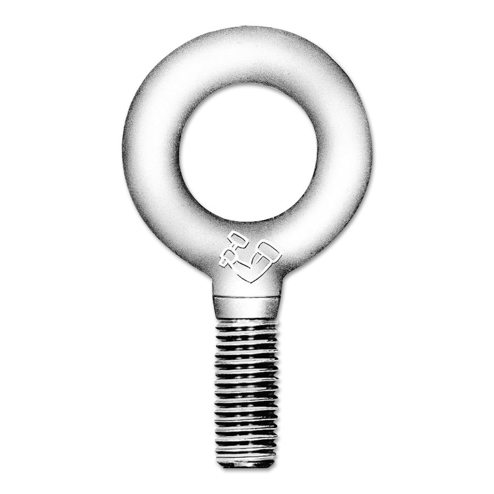

Shoulder Pattern Eye Bolts, 1/4 x 1
Product Description
Drop forged are quenched and tempered for optimum strength. Furnished with Unified National Coarse (U.N.C.) threads. Special threads and lengths.
Specifications
| Eye Inner Diam [Nom] | 3/4 in |
| Eye Outer Size | 1 3/16 in |
| Load Cap. [Nom] | 500 lb |
| Load [Max] @ Angle | 500 lb @ 0 °; 75 lb @ 30 ° |
| Material | Forged Carbon Steel |
| Overall Length [Nom] | 1 in |
| Quantity | 1 per box |
| Thread - TPI or Pitch | 1/4 in - 20 UNC |
| Type | Eye Bolt-Shouldered |
| Wt. | 0.05 lb |
