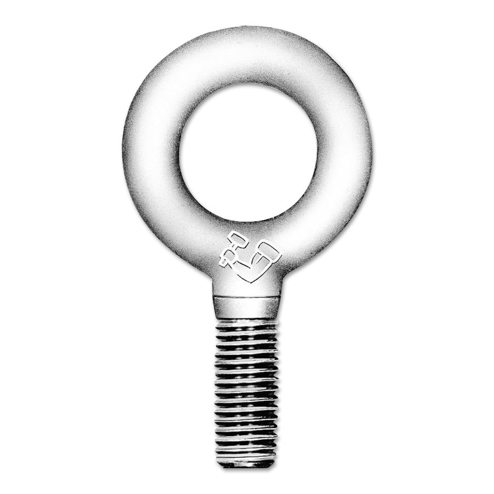

Shoulder Pattern Eye Bolts, 3/4 in - 10 UNC
Shoulder Pattern Eye Bolts, 3/4 in - 10 UNC
SKU: 193-7100226
Manufacturer Part Number: 7100226
Product Description
Specifications
| Eye Inner Diam [Nom] | 1 1/2 in |
| Eye Outer Size | 2 13/16 in |
| Load Cap. [Nom] | 6000 lb |
| Load [Max] @ Angle | 6,000 lb @ 0 °; 3,200 lb @ 30 °; 2,200 lb @ 45 °; 1,450 lb @ 60 °; 1,200 lb @ 90 ° |
| Material | Forged Carbon Steel |
| Overall Length [Nom] | 2 in |
| Quantity | 1 per box |
| Thread - TPI or Pitch | 3/4 in - 10 UNC |
| Type | Eye Bolt-Shouldered |
| Wt. | 0.83 lb |
