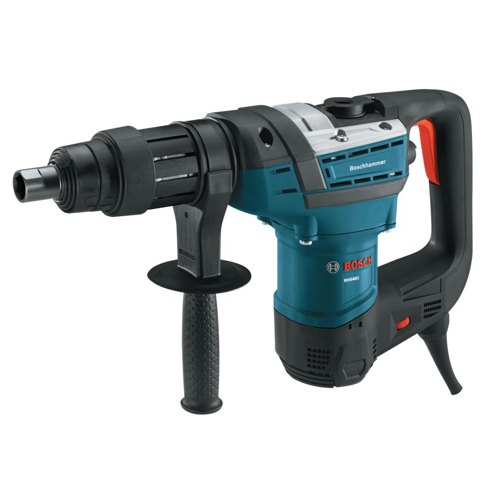

Spline Combination Rotary Hammers, 1 9/16 in Drive, 360° Auxiliary Handle


Product Description

Spline bit system accommodates all accessories with spline or 3/4 In. round hex shanks. Combination dual mode selector knob allows the tool to be switched between rotary hammer mode or hammer only mode. Integral clutch disengages torque transmission if the bit gets into a bind situation. Vario-Lock™ positioning feature rotates and locks chisel into 12 different positions to optimize working angle. 360° Auxiliary handle provides a wide range of movement along with operator comfort.

Specifications

Amps [Nom] 12/31/1899 12:00:00 AM
Control Type Forward/Reverse Switch
Cord Length 8 ft
Cutting Cap. 2 1 9/16 in (concrete)
Cycle Rate [Max] 2,900 blows/min
Cycle Rate [Min] 1,500 blows/min
Drive Size [Nom] 1 9/16 in
Drive Type Spline
Handle Type 360° Auxiliary Handle
Height [Nom] 10 1/2 in
Impact Energy 6.1
Impact [Max] 6.1 ft/lbs
Includes Carrying Case; Auxiliary Handle
Length [Nom] 19 in
Power Source Electric
Speed [Max] 340 rpm
Speed [Min] 170 rpm
Type Combination Rotary Hammer
Voltage [Nom] 120 V
Wt. 15 lb
