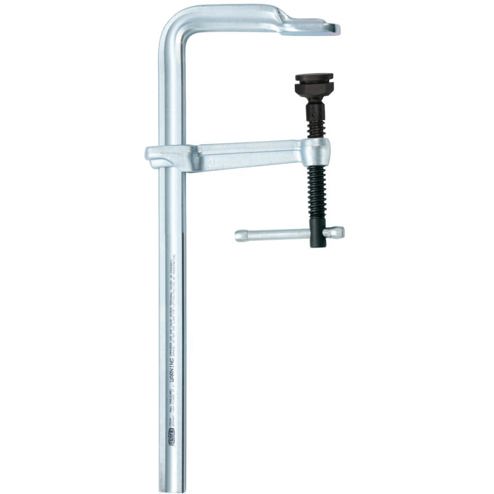

SQ Series Bar Clamp, 6 in, 4-3/4 in Throat, 1330 lb Load Cap


Product Description

Regular-duty, all-steel bar clamp. Comes with standard rail profile and standard pad. Heat treated, high carbon Acme threaded screw – tempered and quenched to give greater loading capacity and longer service life. The high-strength sliding pin T-Handle is sized according to the clamp’s capability.

Specifications

Bar Thickness 13/32 in
Bar Width 55/64 in
Body Finish Satin
Body Material Drop-forged Steel
Capacity [Nom] 6 in
Handle Material Tempered Steel
Handle Type Sliding Pin T-Handle
Height [Nom] 1 1/4 in
Length [Nom] 9.567 in
Load Cap. [Nom] 1330 lb
Material Steel
Opening Size [Max] 6 in
Spindle Diam 5/8 in
Style Standard Pad
Throat Depth [Nom] 4-3/4 in
Width [Nom] 6.568 in
Wt. 2.5 lb
