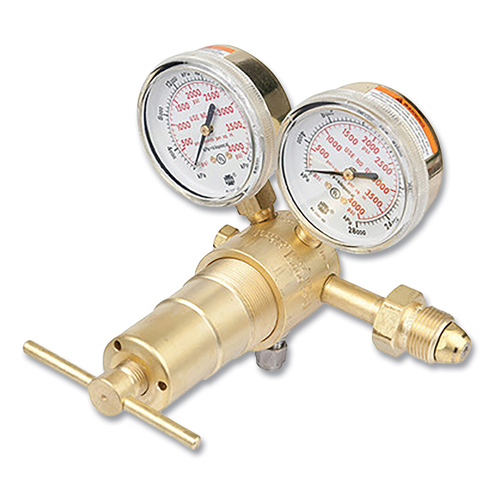

SR 4 High Pressure Single Stage Piston Regulator, Inert Gas, 200 to 3000 psig Flow Range, 3000 psig Inlet Pressure


Product Description

High pressure. Dead-end testing. May be panel mounted. Single stage design. Piston type actuation. All SR 4 series regulators have a swaged lock type stainless steel outlet fitting. Cartridge type seat assembly with PCTFE seat. Delrin® cap bushing for smooth adjustments. External adjustable relief valves on F and G range models. Hydrogen models have ventable relief valves.

Specifications

Body Material Machined Brass
Depth [Nom] 6-1/4 in
Filter Material Bronze; Sintered
Flow Range 200 - 3000 psig
Gas Type Inert Gas
Height [Nom] 6-1/2 in
Inlet Connection CGA 580
Inlet Pressure [Max] 3000 PSIG
Length [Nom] 6 in
Outlet Pressure [Max] 3000 psig
Outlet Pressure [Min] 200 psig
Outlet Size 1/4 in
Outlet Type Swagelok®
Width [Nom] 6 in
Prop65 WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
