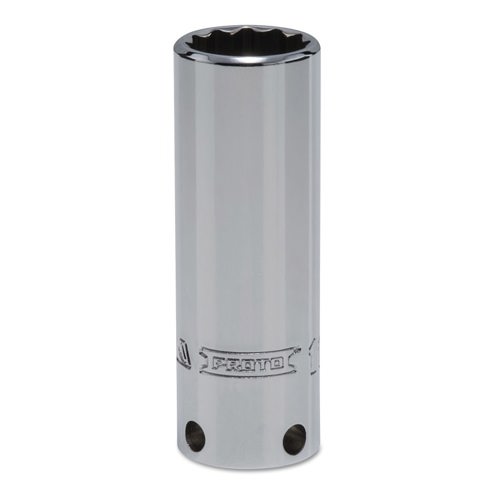

Tether-Ready Drive Deep Sockets, 3/8 in Drive, 11/16 in, 2 3/4 in L, 12 Points


Product Description

Manufactured with four detent holes so that the pin detent will engage correctly regardless of the direction the socket is placed on the square drive. The Positive Control system requires a separate tool to attach or remove the socket, meaning it cannot be removed without specific intent. Finish is applied after the holes are bored for better corrosion resistance. Ideal for use on stubborn or damaged fasteners and also on fasteners made from soft materials. The TorquePlus™ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners. The TorquePlus™ configuration employs a radius-corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage and fastener rounding, helping to extend fastener life, and allowing the user to more easily turn worn, rounded, or rusted fasteners.

Specifications

Drive Size [Nom] 3/8 in
Drive Type Square
Finish Full Polish
Head Width [Nom] 15/16 in
Locking Type Pin
Measuring System Inch
No. of Points 12
Opening Size [Nom] 11/16 in
Overall Length [Nom] 2 3/4 in
Socket Length 2 3/4 in
Tip Type Hex
Type Drive Deep Socket
Width [Nom] 15/16 in
Wt. 0.3 lb
