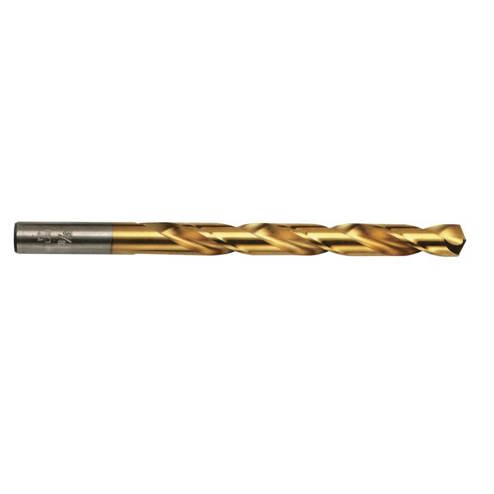

Titanium Nitride Steel Fractl Straight Shank Jobber Length Drill Bit,7/16',Card


Product Description

Titanium nitride coating extends the life of the bit. Last up to six times longer than standard high speed steel drill bits. Heavy-duty web design provides extreme rigidity when drilling in metal applications. Shorter cutting lips reduce torque when drilling in high tensile strength materials. 135-degree split point reduces feed pressure for easier penetration without work hardening.

Specifications

Applications Repetitive Metal Drilling w/Portable Drills; Stationary Drill Press
Bit Length 4 1/16 in
Cutting Diam [Nom] 7/16 in
Cutting Edge Material HSS
Finish TiN
Flute Length 4 1/16 in
Length Group Jobber
No. of Flutes 2
Overall Length [Nom] 5 1/2 in
Packing Type Carded
Point Angle 135°
Point Shape Split Point
Point Thickness 4 1/16 in
Shank Type Cylinder
Spiral Angle CW
Type HSS Drill Bit
Wt. 0.19 lb
