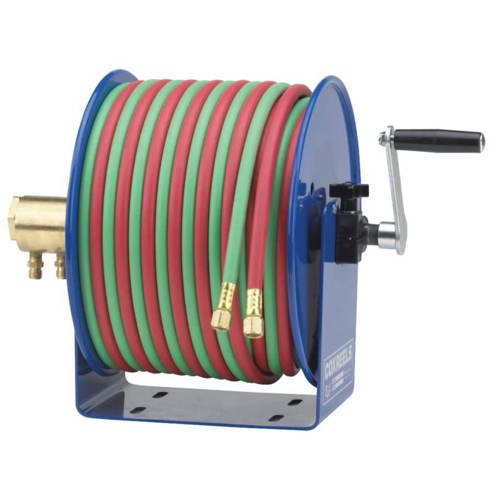

100W Series Welding Hand Crank Twin Line Hose Reel, 50 ft Hose with Fittings, Other Fuels

170-112WT-1-50

Product Description

Compact solid one piece, heavy gauge steel U-shaped frame with open drum design. External 90° full-flow dual ported brass swivel offering both connections from the same side of the reel. Durable proprietary CPC™ powder coat process. Rolled edges and ribbed discs provide strength and safety. Composite bearing for smooth rotation. Adjustable tension brake to prevent free-wheeling during operation, transport, or storage. Direct hand crank rewind.

Specifications

Bearing Type Composite
Drum Width 6 in
Height [Nom] 13 in
Hose I.D. [Nom] 1/4 in
Hose Length 50 ft
Hose Type Twin Line Welding Hose; Other Fuels
Includes Hand Crank Hose Reel; Other Fuels Twin Line Welding Hose; Welding Hose Fittings
Length [Nom] 12 in
Pressure [Nom] 200 psi
Thread - TPI or Pitch 9/16 in-18 UNF
Type 100W Series Hand Crank Twin Line Welding Hose Reel with Hose
Width [Nom] 15-1/4 in Overall
Prop65 WARNING: This product can expose you to chemicals including Nickel, which is known to the State of California to cause cancer and Chromium which is know to the State of California to cause birth defects or reproductive harm. For more information go to www.P65Warnings.ca.gov
