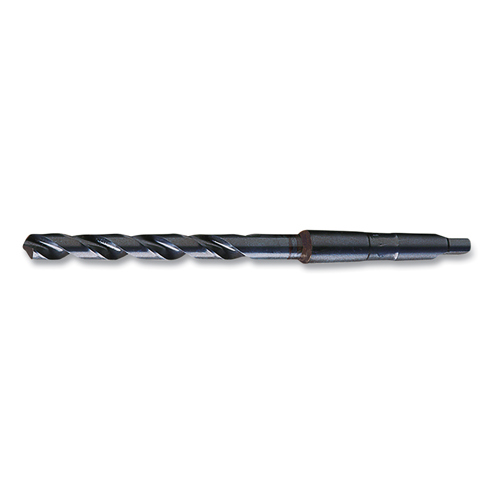

1682 and 1894 General Application Twist Drill Bit, 1-5/8 in, 118°, 17 in, #5 Morse Taper Shank Type


Product Description

General Purpose Geometry for drilling a wide range of operating conditions and materials. Taper shank made to American National Standard (Morse). Manufactured of high-speed steel. Ideal for portable drilling and maintenance applications. 118° radial point. Black oxide finish for extended wear life and reduced chip welding and galling. Oversize and undersize shanks available in selected sizes. For drilling in carbon steel, tool steel, alloy steel and cast iron.

Specifications

Applicable Materials Carbon Steel; Tool Steel; Alloy Steel; Cast Iron
Cutting Diam [Nom] 1-5/8 in
Finish Steam Oxide
Flute Length 10 in
Overall Length [Nom] 17 in
Point Angle 118°
Shank Type #5 Morse Taper
Prop65 WARNING: This product can expose you to LEAD, NICKEL AND COBALT, a chemical known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
