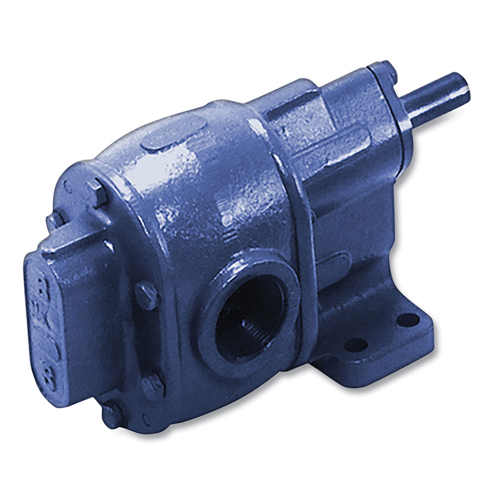

B-Series Pedestal Mount Gear Pump, 1/2 in, 9.4 GPM, 200 psi, No Valve, CW/CCW Rotation

117-713-2-1

Product Description

BSM 'B' and 'S' series pumps are a good choice for a variety of recirculating, mixing, transfer, hydraulic, and metering applications. These pumps are available pedestal or flange mounted, with integral relief valve. Constructed of cast iron, ductile iron, or bronze. Seal options include compression packing, lip seal, and mechanical seal. Standard pumps will operate at 200 psi and 250° F. Typical liquids pumped include various oils, machine tool coolant, solvents, resins, paints, varnishes, and many other liquids.

Specifications

0 PSI Flow/Power 9.4 gal/min/0.11 hp
100 PSI Flow / Power 9.1 gal/min / 0.85 hp
200 PSI Flow/Power 8.9 gal/min/1.50 hp
50 PSI Flow/Power 9.3 gal/min/0.48 hp
Displacement 0.0104 gal/rev
Flow [Max] 9.4 gal/min
Gear Material Steel
Gear Type Spur
Housing Material Iron
Mounting Pedestal
Port Size 1/2 in
Pressure [Max] 200 psi
Rotation CW or CCW
Shaft Diam 0.63 in
Shaft Height 3 in
Slip gpm/psi 0.0023
Speed [Max] 900 rpm
Type Without Relief Valve
