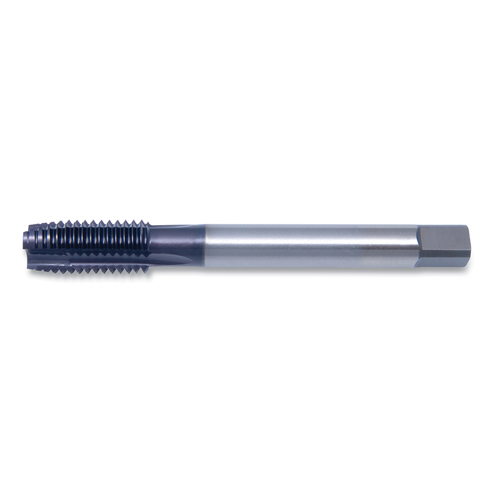

PRO-961SP Bright Plug Spiral Point Tap, 3FL, #4-40 UNC Tool Size


Product Description

The black-oxide finish on these taps retains lubricants to improve the taps' wear resistance and chip flow. Black-oxide taps should only be used on ferrous metals. These taps meet DIN length standards and have a longer overall length than taps that meet ISO, ANSI, and JIS length standards.

Specifications

Applicable Materials Hardened Material; Stainless Steel; Non Ferrous Metals; Aluminum; Stee;
Cutting Direction Right
End Shape Square
Length [Nom] 2.2047 in
Material Cobalt
Measuring System Imperial
No. of Flutes 3
Shank Size Symbol Square
Style Spiral Point Tap
Tap Type Machine Tap
Thread - TPI or Pitch #4-40 UNC
Thread Pitch [Nom] 40
Thread Size [Nom] #4
Threads Per Inch [Nom] 40
Type Machine Tap
Prop65 WARNING: This product can expose you to LEAD, NICKEL AND COBALT, a chemical known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
